3 coin acceptance,
handle different country`s coins,
pulse output signal,12v input,
Coin diameter: 18mm -33mm
Coin thickness: 1.2mm -3mm
Work voltage: DC12V (more or less 20percent)
Current in 50ma
Pulse signal: fast-25ms.medium-45ms and slow-65ms
Size per unit: W 14 x D6.5 x H13(mm)
Net weight: 600grams/each
Packing: 50 pcs/case
Per case: 20 kgs
Size per case: W745 x D352 x H275(mm)
Details
3 coin acceptance, handle different countrys coins, pulse output signal,12v input,
Coin diameter: 18mm -29mm
Coin thickness: 1.2mm -3mm
Work voltage: DC12V (more or less 20percent)
Current in 50ma .Pulse signal: fast-25ms.medium-45ms and slow-65ms
Size per unit: W 14 x D6.5 x H13(mm)
Net weight: 600grams/each
Packing: 30 pcs/case
Per case: 16.6 kgs
Size per case: W435 x D350 x H270(mm)

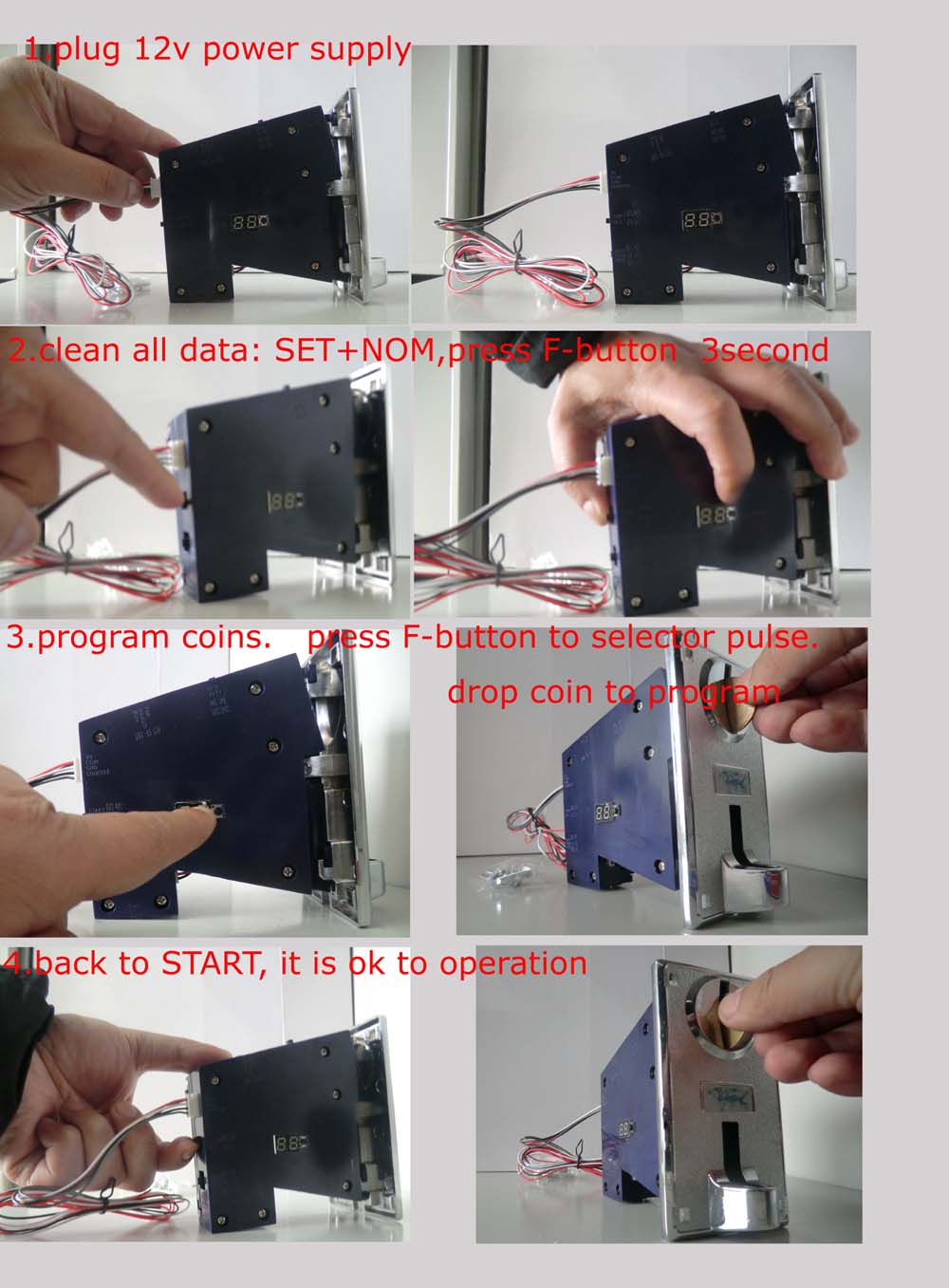

Operation
Step 1: operate with the game machine's standard mode Normal Open
Step 2: switch to the correct speed(pulse) of coin machine: FAST 25ms.MEDIUM 45ms and SLOW 65ms
Step 3: Connecting the +12V DC and Ground wiring for the coin Acceptor.
Step 4: Arrange the token sample that you want the Coin acceptor to accept
Step 5: Set the switch from "Start" to "Set" position.the LED light will show "00".press the switch which for adjusting the coin's value.to adjust the coin value when the coin programming."00-99" means how many times of the out ,pulse signal will be sent when the programmed coin was deposited.return the switch from "Set" to "Start".it is finished
Step 6: Set the switch from "NOM" to "MGN" position.then turn the switch from "Start" to "Set" position.the LED show default "P1"."P1-P9" means a output signal needs how many programmed coins to be deposited like "P1.P2.P3…P9"
Step 7: Prepare the needed sample coins.
Step 8: Insert 10pcs coins in turn to set the coin (time interval 0.3 seconds)
Step 9: Turn the coin set switch to "Start" and finished the setting.
Apply to: vending machine, wash machine, game machine, shoe cleaning machine, TV, Massage chair, petrol filling station, automatic battery recharge, PC.etc.
Elite model.anti-false coin.anti-string,anti-jam,anti-fishing.support large coin,thick coin,small coin.stable performance,accurately recognize.smoothly deposit)
