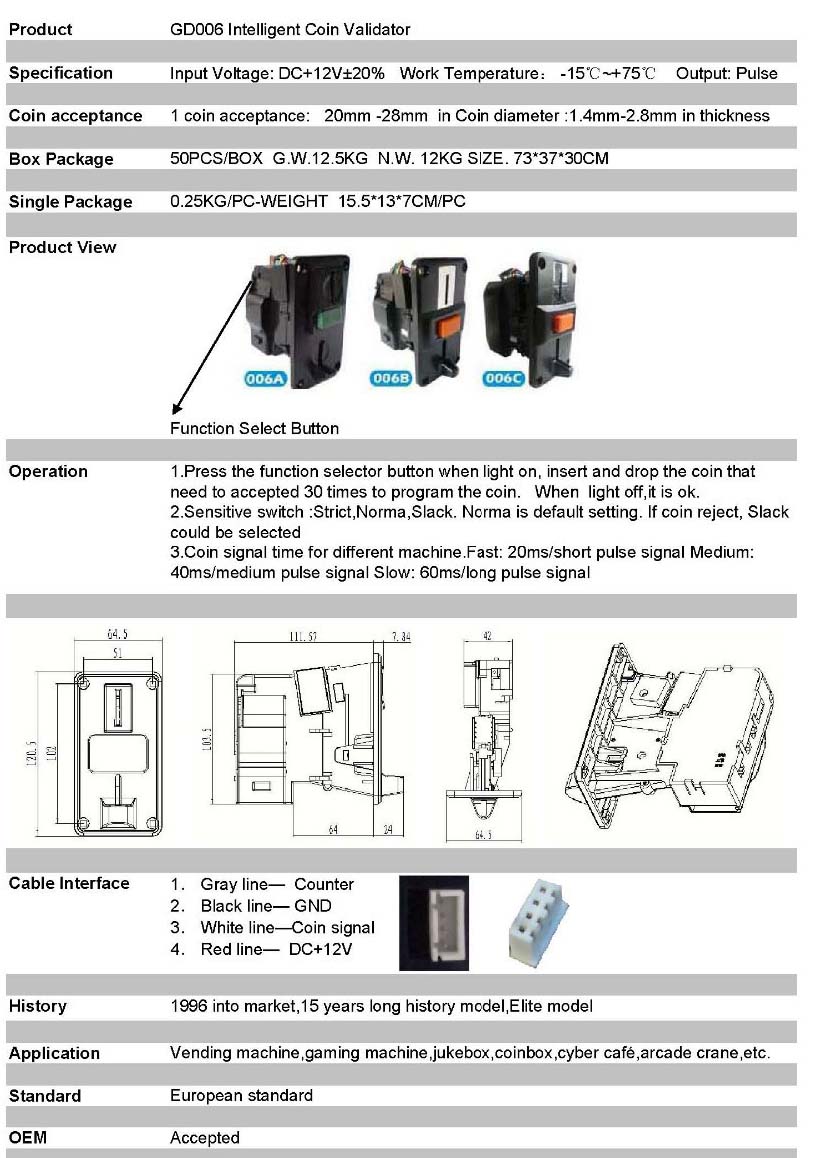

GD Y006B Intelligent Single Coin Selector



Voltage:DC+12V±20%

Temperature:-10°C to +50°C

Coin diameter :20mm -28mm

Coin thickness: 1.4mm-2.4mm

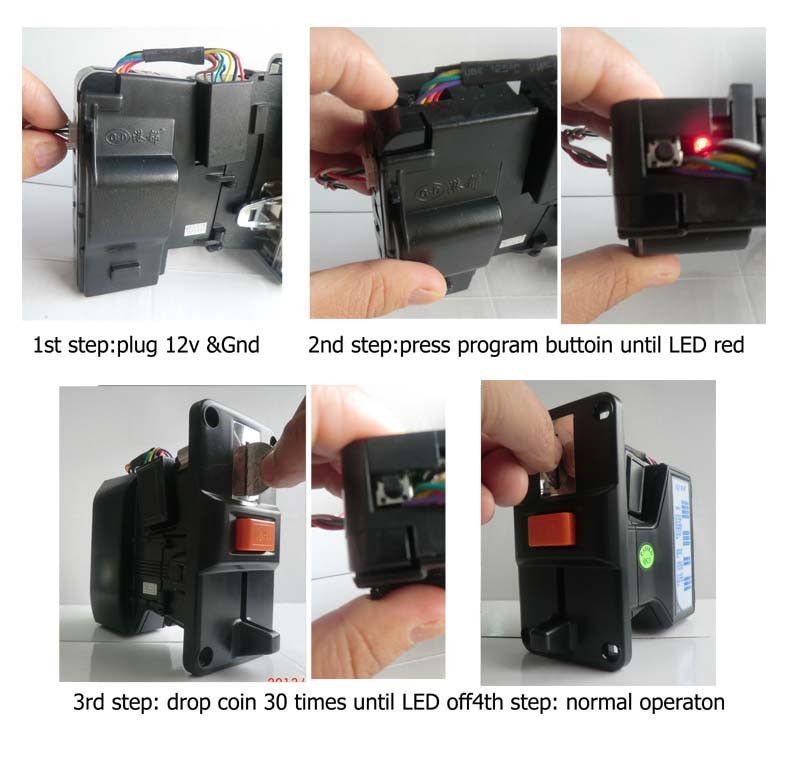

Operations:

1.      Plug and work.

2.      Choose N.O/ N.C in coordination with the machine specification.

3.      Select coin signal time for different machine.

Fast: 20ms/short pulse signal (apply to large Mario machine)

Medium: 40ms/medium pulse signal (apply to small Mario machine)

Slow: 60ms/long pulse signal (apply to screen machine, vending machine, water dispenser)



4.      Sensitive switch :Strict, Norma, Slack. Norma is default setting. If coin reject, Slack could be selected.

5.      Apply to gaming machine, public service vehicle, vending machine, water dispenser, coin operated telephone and other coin acceptance public facility system.
