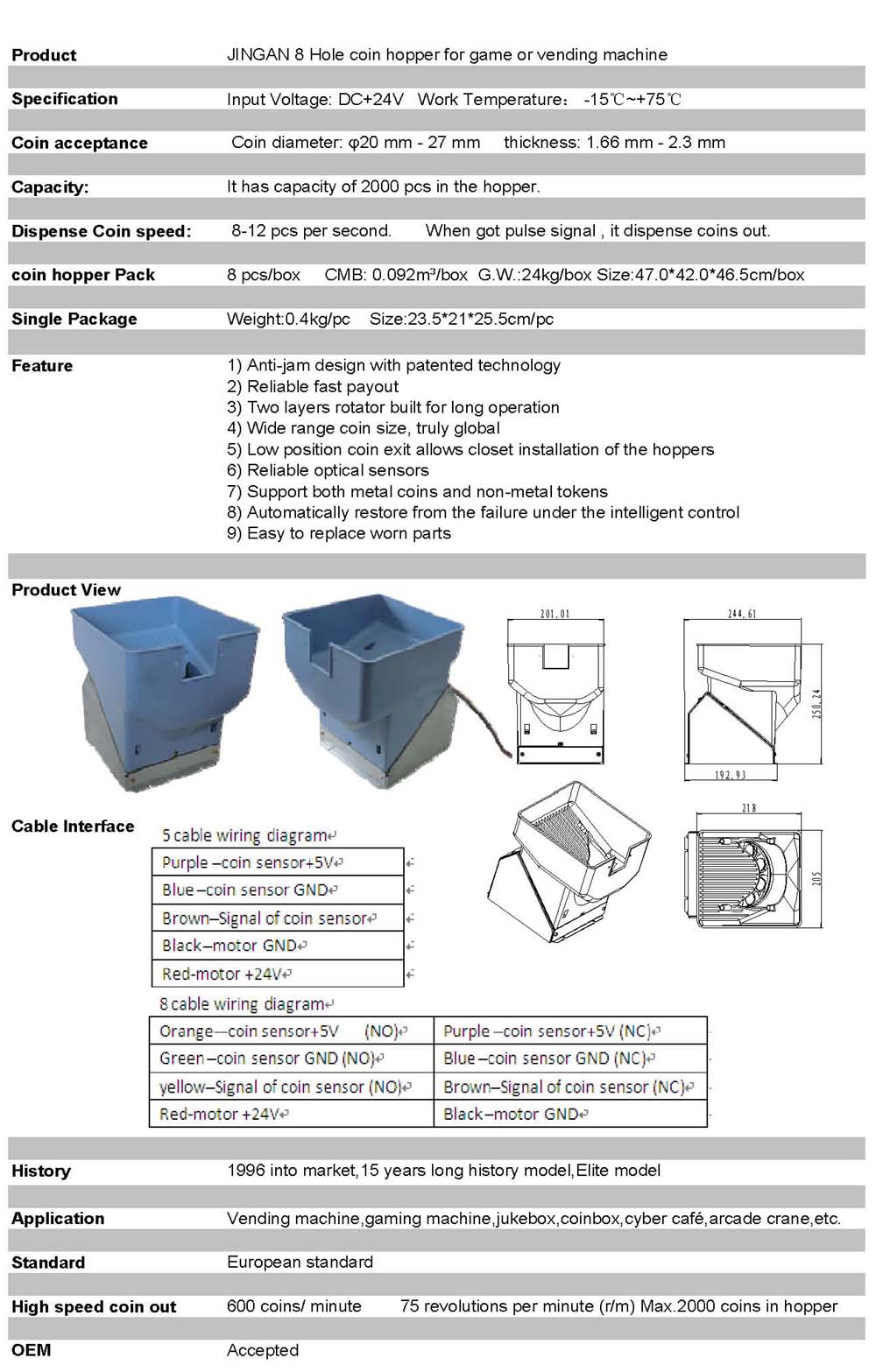

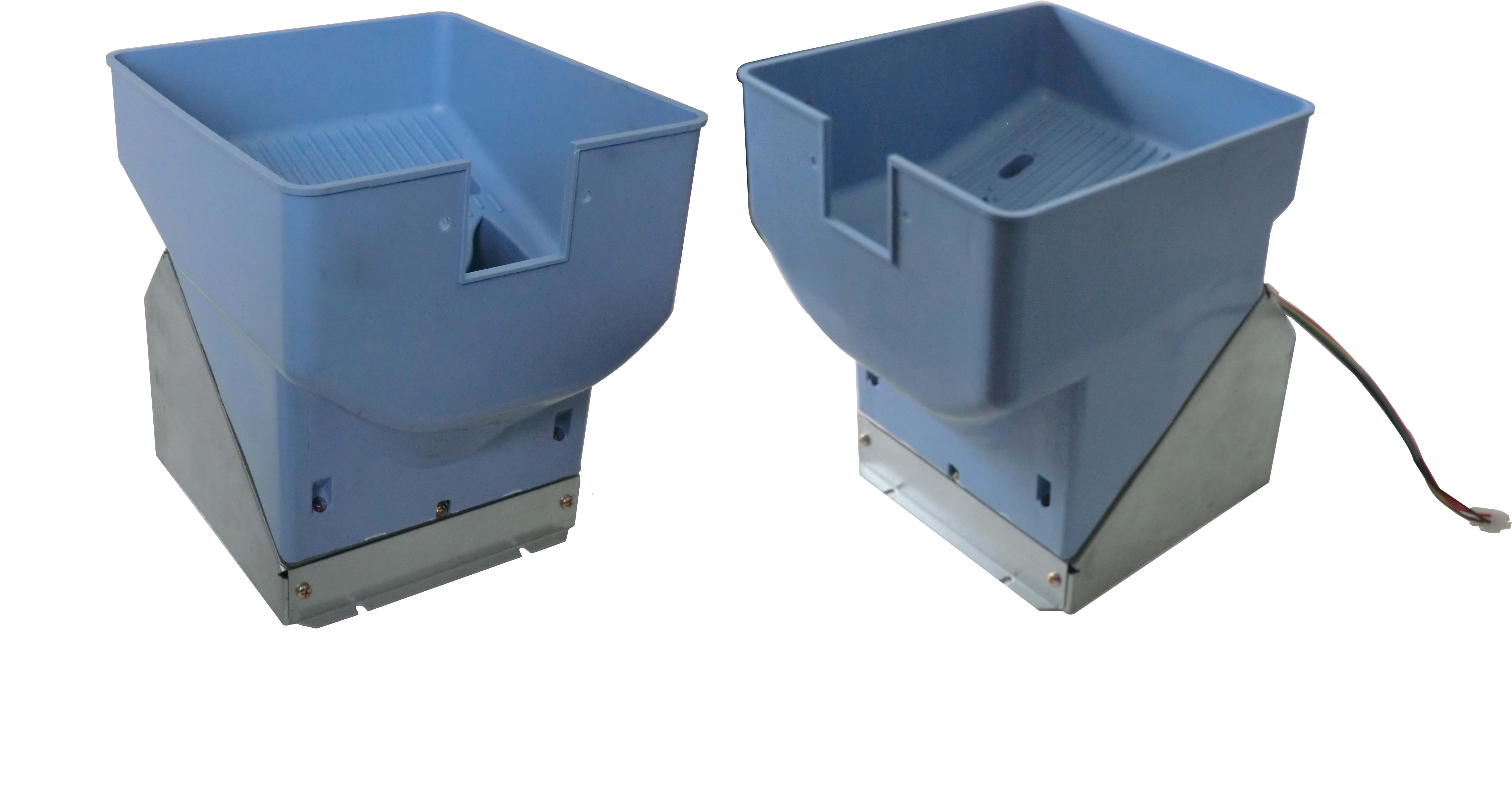

JINGAN 8 Hole coin hopper for dispenser

Specification Input Voltage: DC+24V Work Temperature： -15℃~+75℃

Coin acceptance Coin diameter: φ20 mm - 27 mm thickness: 1.66 mm - 2.3 mm

Capacity: It has capacity of 2000 pcs in the hopper.

Dispense Coin speed: 8-12 pcs per second.
When got pulse signal , it dispense coins out.

coin hopper Pack 8 pcs/box CMB: 0.092m³/box G.W.:24kg/box Size:47.0*42.0*46.5cm/box

Single Package Weight:0.4kg/pc Size:23.5*21*25.5cm/pc
