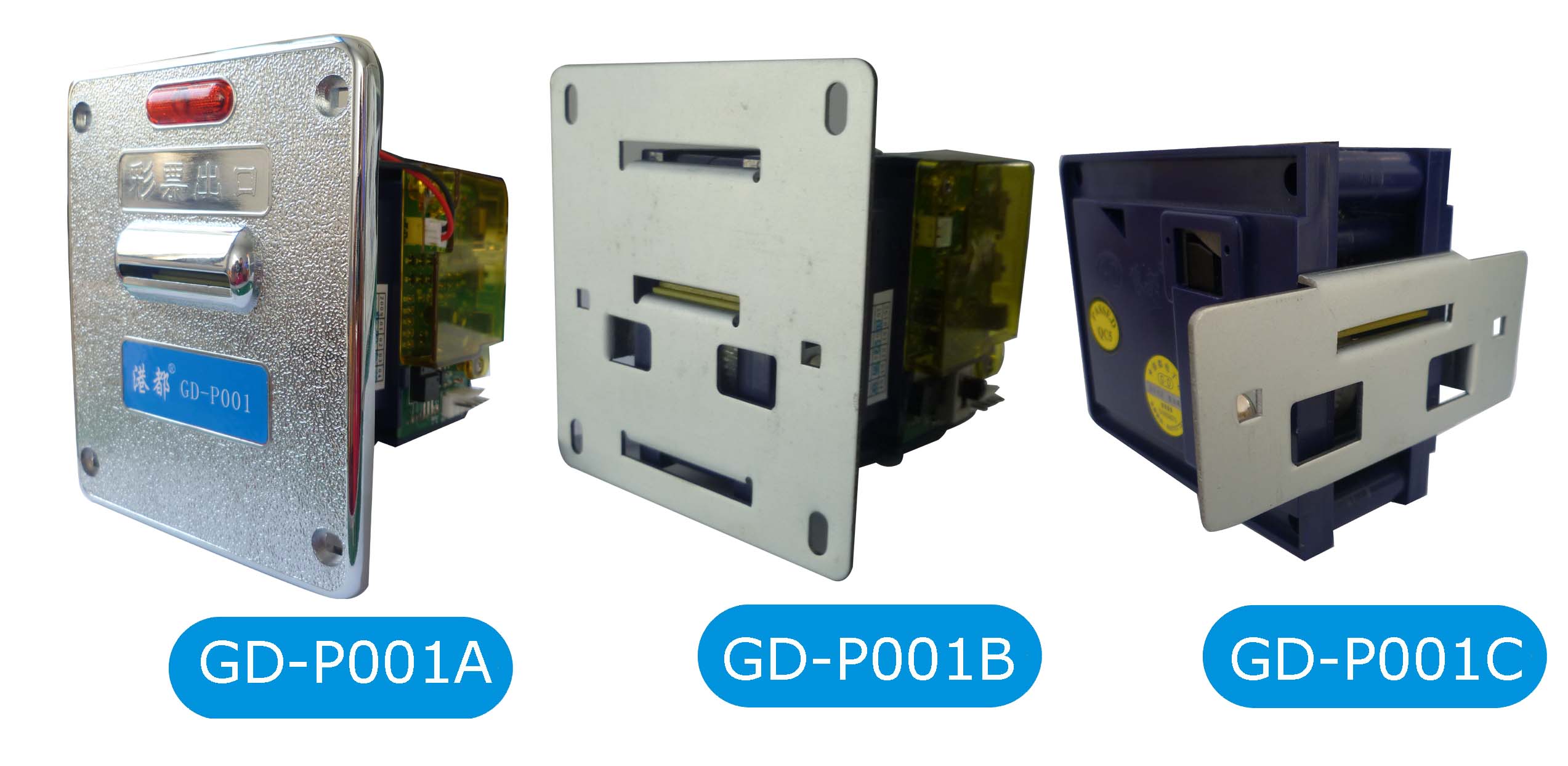

GD-P001C Professional ticket dispenser for game machine

Place of Origin: Zhejiang China (Mainland)
Brand Name: GD
Model Number: P001C
Package: one Bubble bag inside with a inside box
Available: game machine/vending machine/other service equipment
Panel materials: zinc alloy/plastic/ Electroplating
Color: red/black/silve
Business type: china manufacturer
Product type: game accessories /other accessories & parts
Voltage: DC 12V  Coin Diameter:18 mm -31 mm
Currents: 70mA -700 mA Temperature:-15  75 degree

Product Description
GD-P001 Professional ticket dispenser instruction:
 Adapt to the machine,switch to SW1,to choose OV low level or +5ν high level as the effective  output voltage.
 Adapt to the machine ,choice NO/NC(on/off)switch,for adjusting the ticket to the best site of ticket-out;
 Put the ticket into the machine,turn on the test button SW3 for adjusting the ticket to the best site of ticket-out;
The fault light on the pannel will always power on if the ticket is not      locket,otherwise the light will power off .It twinkles according to the ticket-out.


Function:
1. Program control and counting precision
2. Speed ticket
3. Has a reverse function

Product parameters:Voltage: DC+12V+10%
Ticket width: 29mm   Ticket length: 50mm-120mm
Package: 20 PCS/ctn  Dimension: 540*275*270
G. W: 12.20kg  Availability: 5000PCS/week
