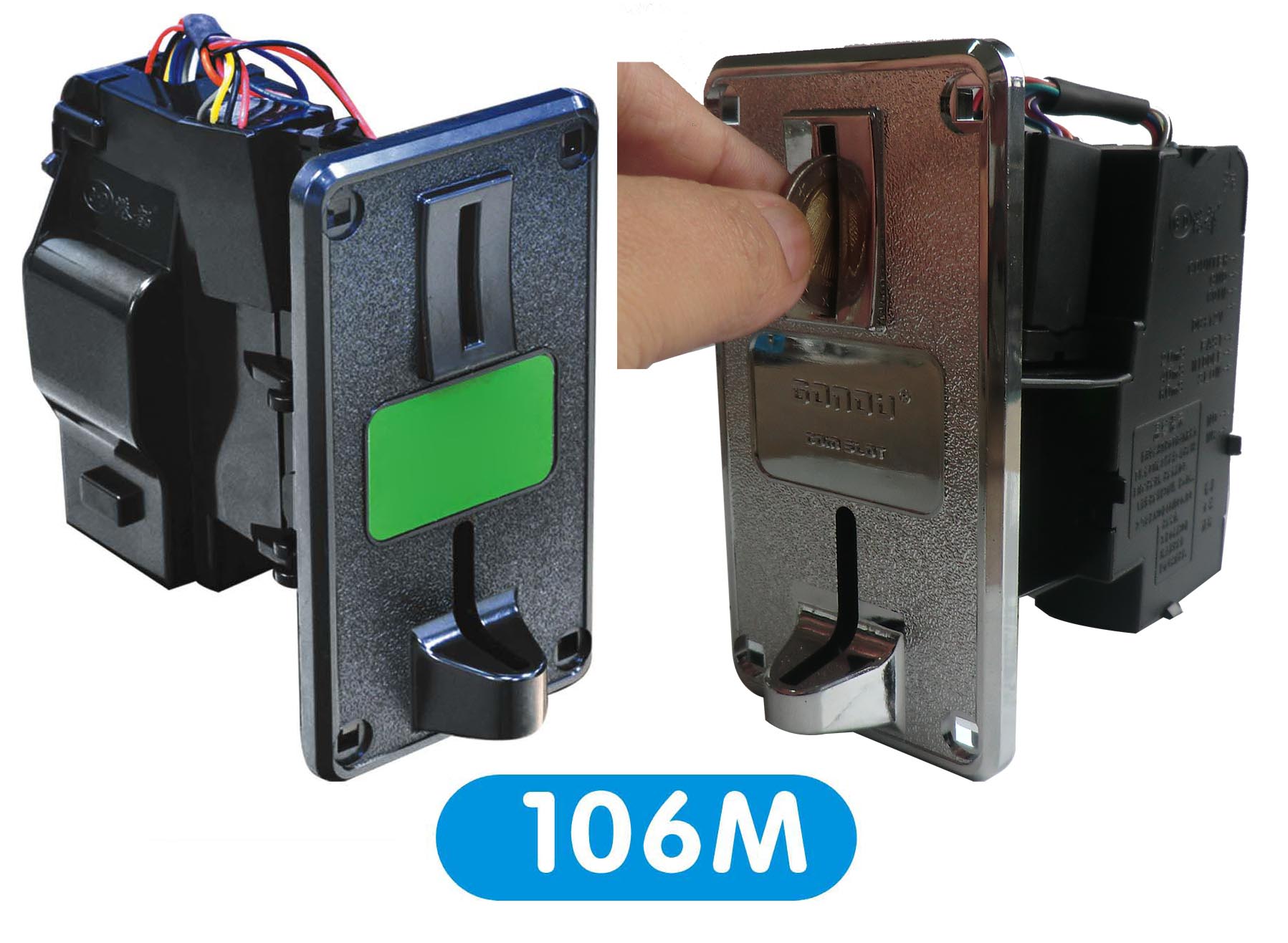

GD-Y106 vending machine coin acceptor
( 2 coin acceptance)

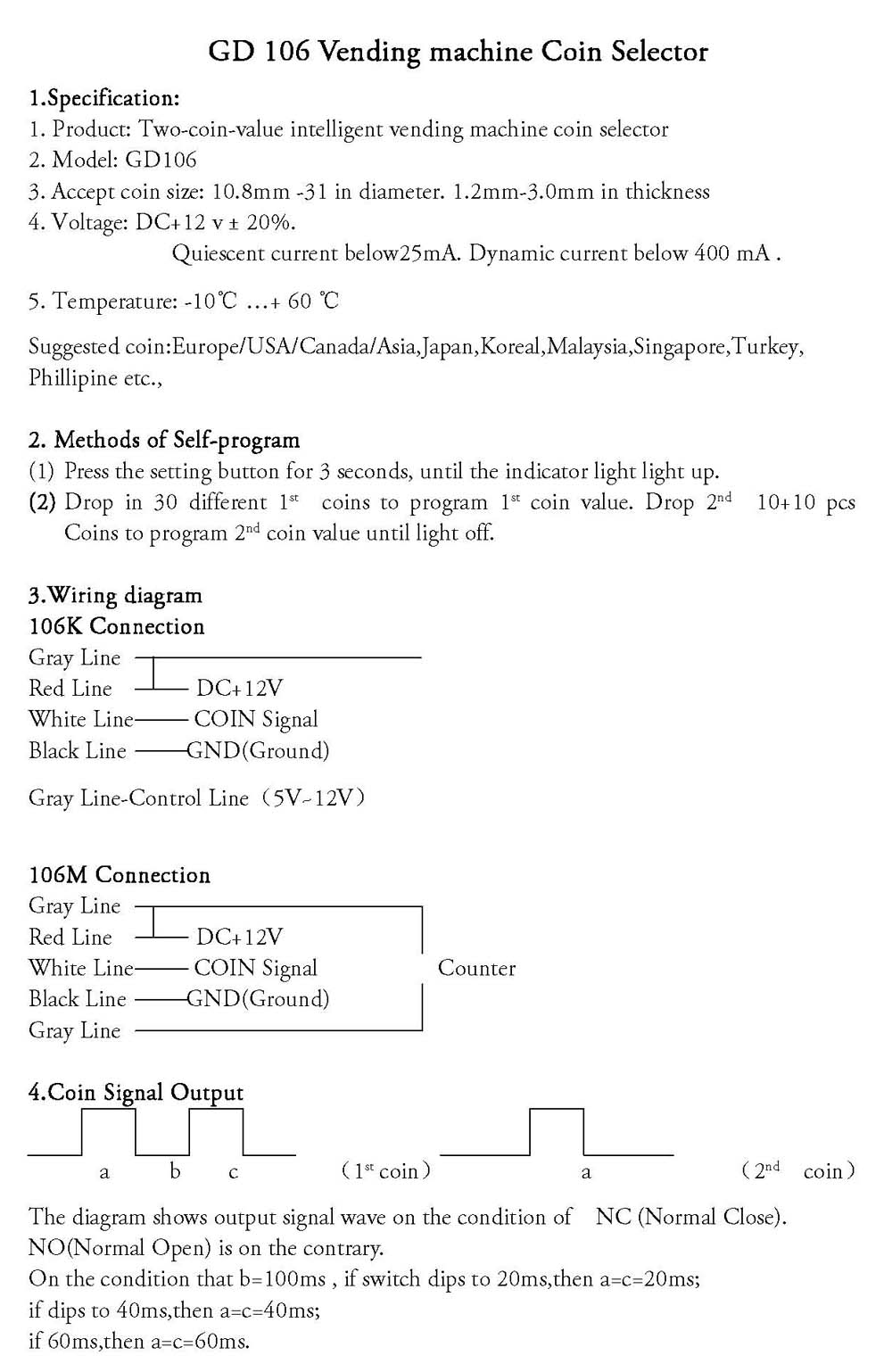

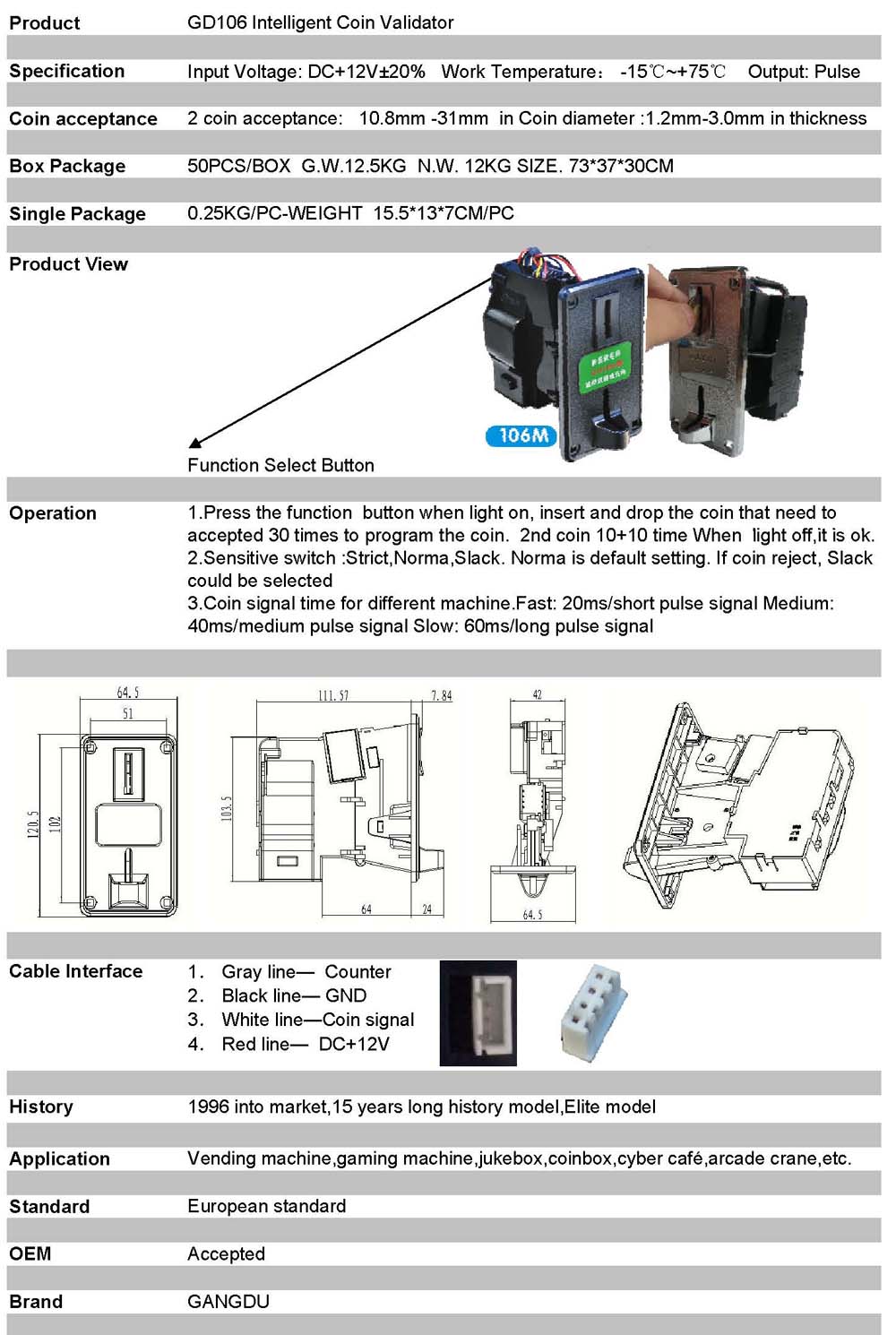

1. product name: Two-coin vending machine coin acceptor
2. model number: GD106
3. accept coin size: 10.8mm -31 in diameter. 1.2mm-3.0mm in thickness
4. work voltage: DC+12 v ± 20percent.
Quiescent current below25mA.
Dynamic current below 400 mA .
5. temperature: -10 degree …+ 60 degree
