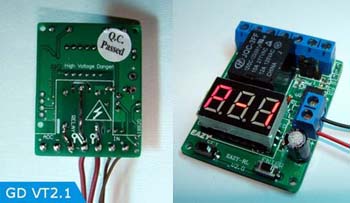

GD-VT2.1 Time control board working with coin acceptor





Model:GD-VT2.1

Voltage: 12v DC DC10-15V

Support: Support any GD coin acceptor and Bill Acceptor as long as it can output pulse signal

Apply to: vending machine, wash machine, game machine, shoe cleaning machine, TV, Massage chair, petrol filling station , automatic battery recharge, PC, etc.

Voltage detect / Time contro output(relay)

+ -

(SET) (ENTER)



Function: timing control, time delay, voltage detect, time add (cumulation ) function such as 1+2+5=8 ,pulse trigger time board.

-GND/+pulse input



Time range: LED show 1-999 minutes, 1-999 seconds,

Voltage detect: LED show 0-99.9V or 0-9.99V

Pulse signal
Switch signal



The mode display: P-1 should be selected in common.

- GND

Power

+ 12v





P-1 Timing relay mode
P-2 Time delay relay mode
P-3 Voltage control relay mode
P-4 Voltage & time control relay mode

Set Time

short press SET into P-1[timing control mode],



2. press ENTER,LED shows 000.

(T1=000,Operating time,T2=000,Releasing time)

3. short press SET, 000, 0 twinkles, into T1.

Press ENTER to program operation time 1-999 sec or

Minutes, decimal point twinkle=minutes, without it=second

4. short press SET 4 times into T2, ENTER to set.

5. short press SET to set circulation times.

6. short press SET to exit set status, and into operation.
