1 coin acceptance,handle different countrys coins,pulse output signal ,12v input

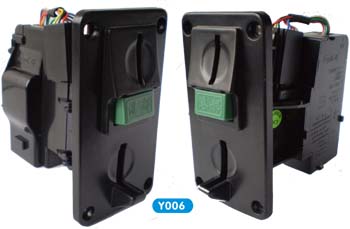

GD Y006 Intelligent Single Coin Selector

Voltage:DC+12V±20%

Temperature:-10°C to +50°C

Coin diameter :20mm -28mm

Coin thickness: 1.4mm-2.4mm

Operations:

1.      Plug and work.

2.      Choose N.O/ N.C in coordination with the machine specification.

3.      Select coin signal time for different machine.

Fast: 20ms/short pulse signal (apply to large Mario machine)

Medium: 40ms/medium pulse signal (apply to small Mario machine)

Slow: 60ms/long pulse signal (apply to screen machine, vending machine, water dispenser)

4.      Sensitive switch :Strict, Norma, Slack. Norma is default setting. If coin reject, Slack could be selected.

5.      Apply to gaming machine, public service vehicle, vending machine, water dispenser, coin operated telephone and other coin acceptance public facility system.

Apply to gaming machine, public service vehicle, vending machine, water dispenser, coin operated telephone and other coin acceptance public facility system.

Features:

-Sample coin comparison type validator
-Programmable for one coin type based on coin material.thickness and size
-Quick release face plate for easy maintenance
-Black color face plate with push button type coin release
(Suggested for use in: Europe / USA / Canada / Asia)
