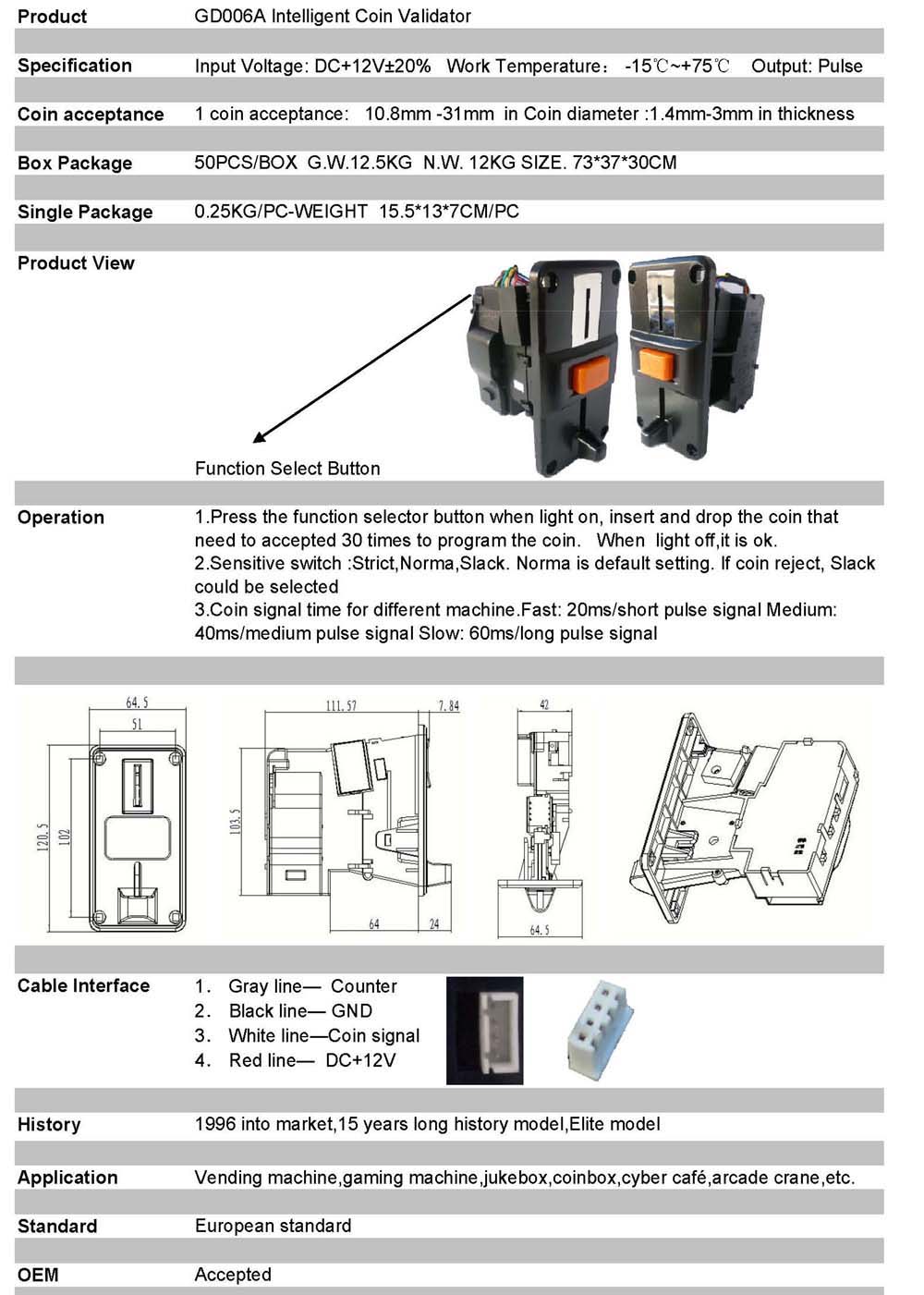

Product GD006-A Intelligent Coin Validator
Specification Input Voltage: DC+12V±20%
Work Temperature： -15℃~+75℃
Output: Pulse .
Stand by Current: 50mA-55mA .
Operating Current: 310mA-340mA
Coin acceptance: 1 coin acceptance:
10.8mm -31mm in Coin diameter :
1.4mm-3 mm in thickness
Box Package 50PCS/BOX
G.W.12.5KG N.W. 12KG
SIZE. 73*37*30CM
Single Package 0.25KG/PC-
WEIGHT 15.5*13*7CM/PC

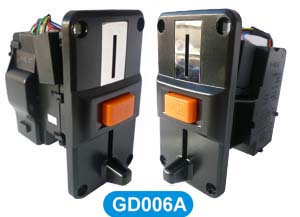

GD-006A Intelligent Single Coin Selector
Voltage:DC+12V±20%
Temperature:-10°C to +50°C
Coin diameter :10.8mm -31mm
Coin thickness: 1.4mm-3 mm

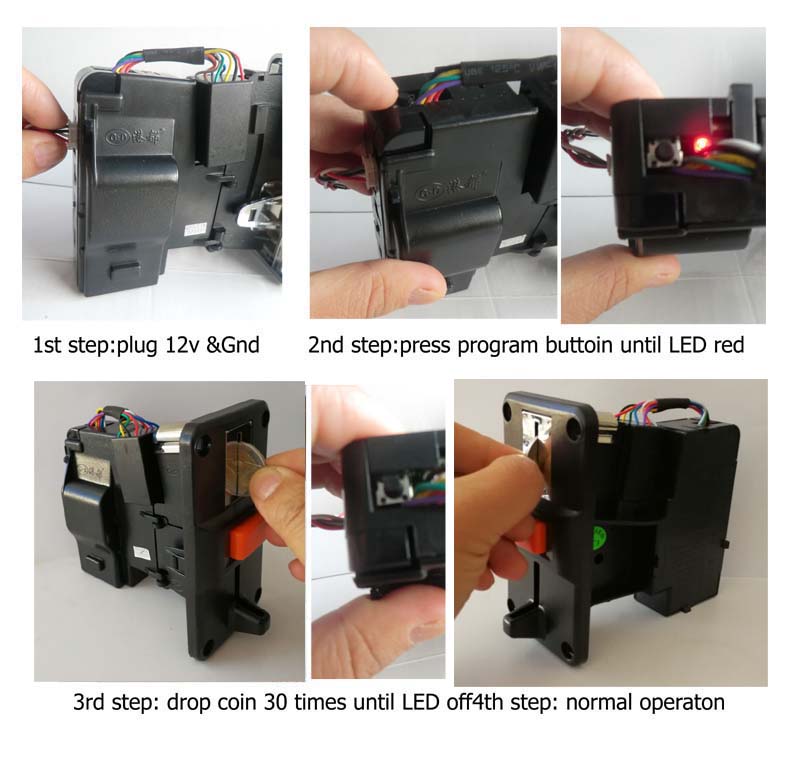

Operations:
1. Plug and work.
2. Choose N.O/ N.C in coordination with the machine specification.
3. Select coin signal time for different machine.
Fast: 20ms/short pulse signal (apply to large Mario machine)
Medium: 40ms/medium pulse signal (apply to small Mario machine)
Slow: 60ms/long pulse signal (apply to screen machine, vending machine, water dispenser)
4. Sensitive switch :Strict, Norma, Slack. Norma is default setting. If coin reject, Slack could be selected.
5. Apply to gaming machine, public service vehicle, vending machine, water dispenser, coin operated telephone and other coin acceptance public facility system.
