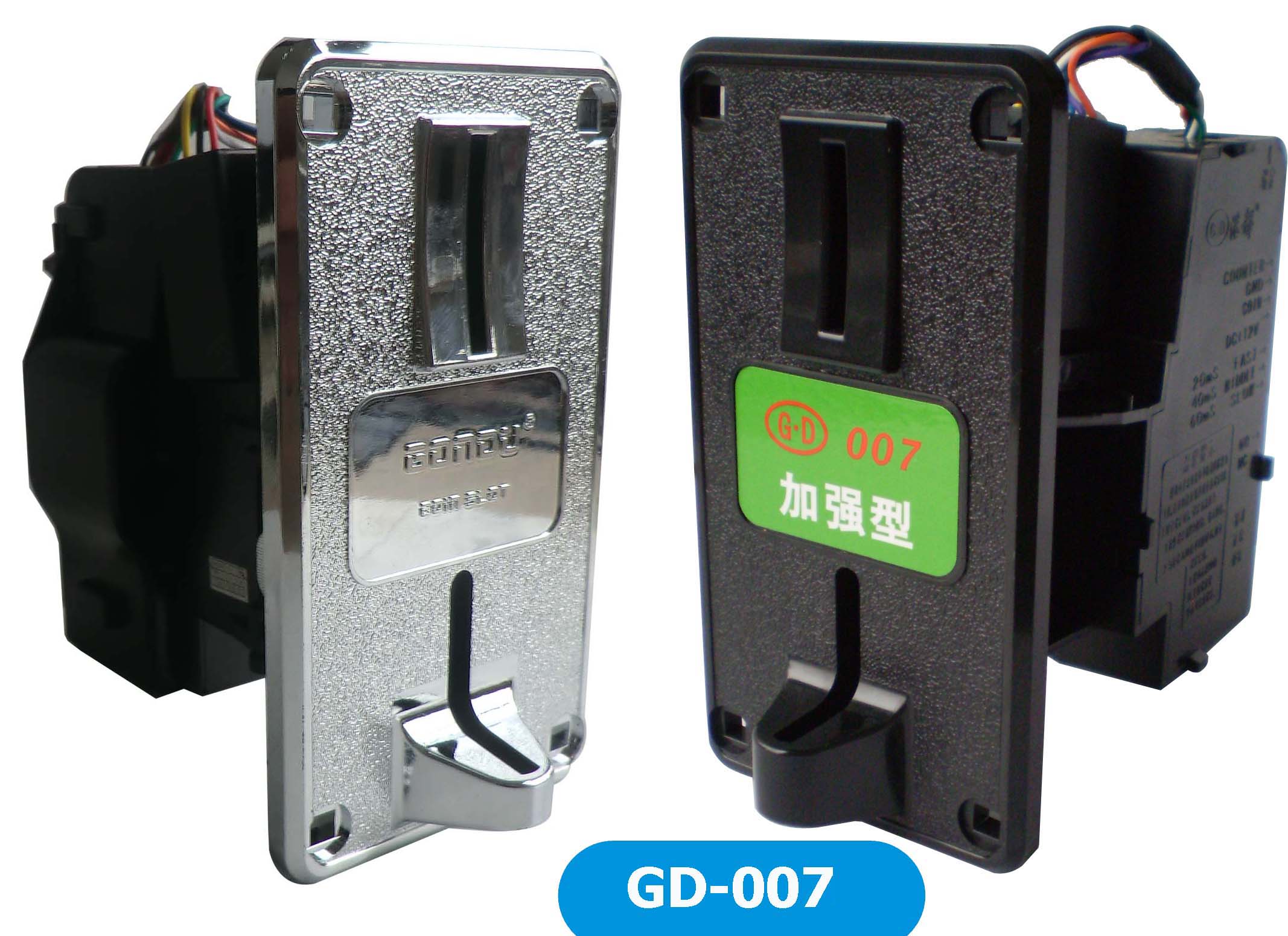

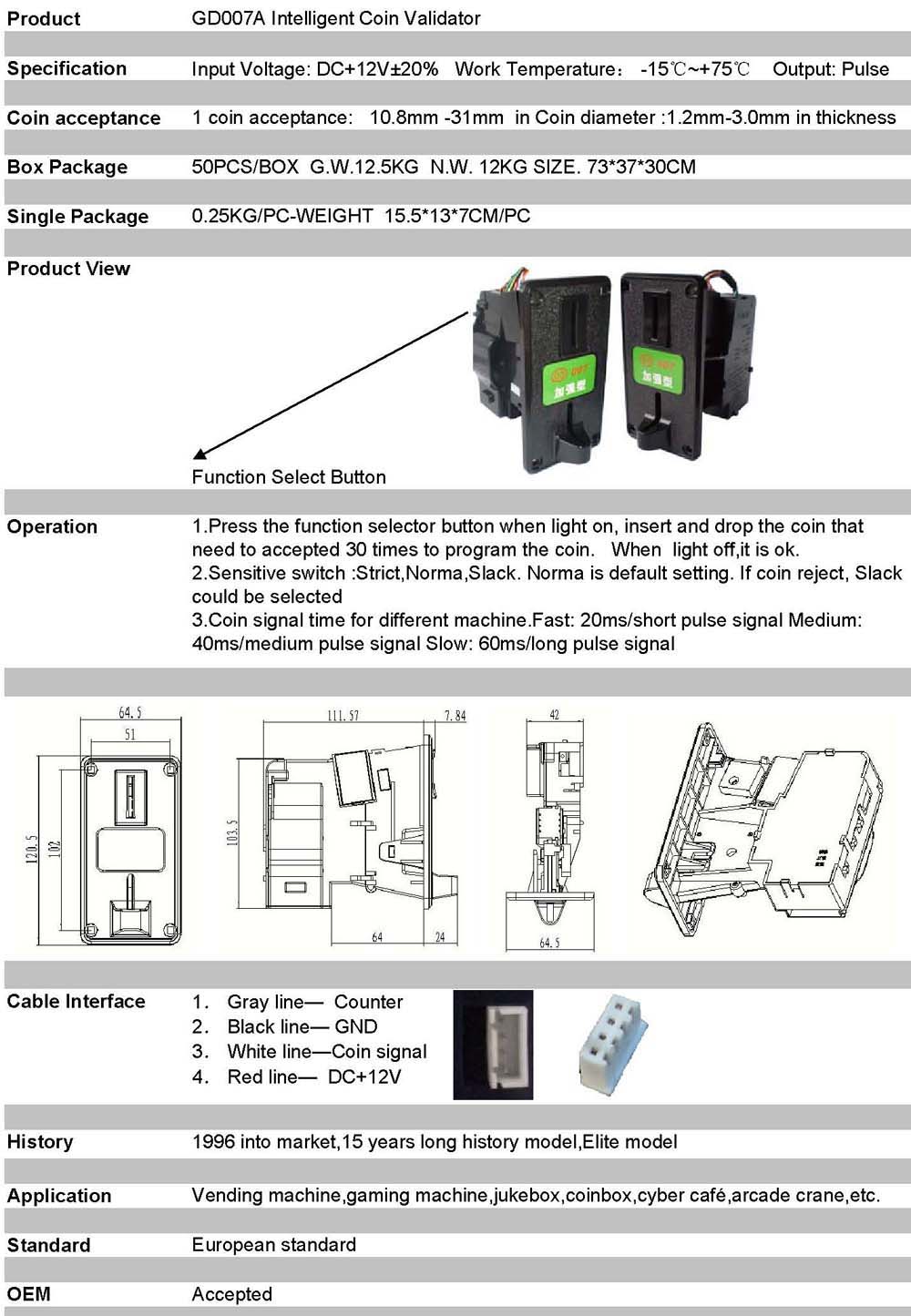

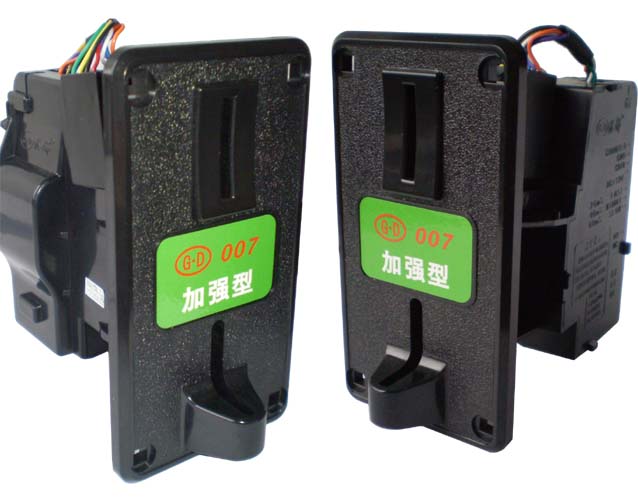

1. product name:
single-coin intelligent coin acceptor
2. model number: GD007A

3. accept coin size: 10.8mm -31 in diameter. 1.2mm-3.0mm in thickness
4. work voltage: DC+12 v ± 20percent. Quiescent current below25mA. Dynamic current below 400 mA .
5. temperature: -10 degree …+ 60 degree

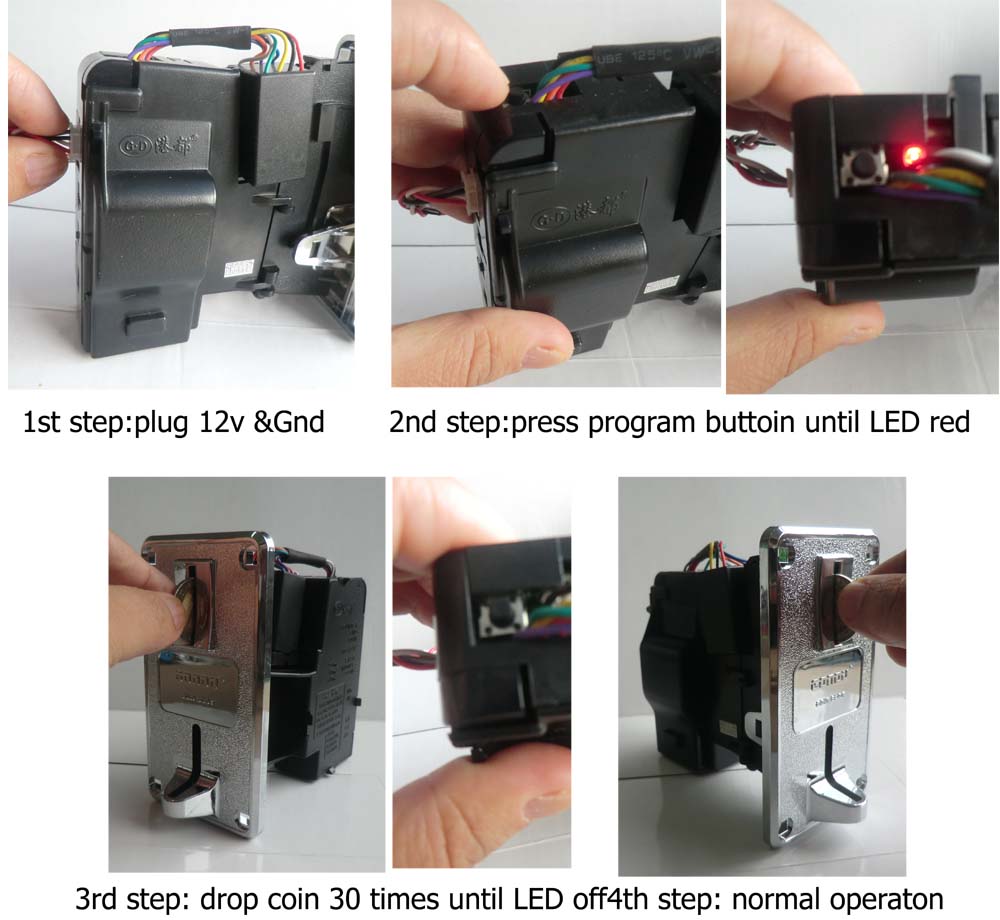

Methods of Self-program
(1) Press the setting button for 3 seconds, until the indicator light light up.
(2) Drop in 30 different 1st coins to program 1st coin value. light off.



3.Wiring diagram

Gray Line
Red Line DC+12V
White Line COIN Signal Counter
Black Line GND(Ground)
Gray Line



4.Coin Signal Output: Pulse output
