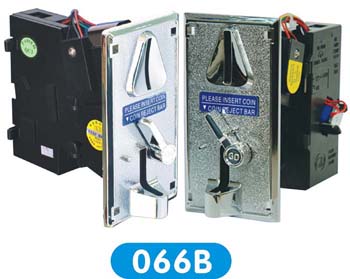

    GD066B comparable coin acceptor selector validators





    GD066B comparable coin acceptor selector



    ·Rating voltage: DC+12V with 20% discrepancy



    ·Stand by Current: 50mA-55mA

    ·Operating Current: 310mA-340mA

    ·Accepted coin diameter: 18mm-32mm

    ·Accepted coin thickness: 1.2mm-3.0mm

    ·Size per unit: W14 x D6.5 x H12.5(mm)

    ·Net weight: 0.38kgs

    ·Packing: 50 pcs/case

    ·Per case: 17.86 kgs

    ·Size per case: W745 x D352 x H275(mm)










    GD066B
    GD066B
    Detailed Products

    Comparable coin acceptor selector

    Easy for installation.

    1.Good level of security at a very competitive price.

    2.Uses independent diameter sensing that discriminates shaved coins or tokens.

    3.An array of sensors track the passage of the coin from the moment it enters the Comparitor until it exits, automatic warning when failure happens.

    4.Fine-tuned against better quality slugs and frauds

    5.Double-door design , improve the stability

    6.High-sensitive judgment of singlechip, prevent wrong-count, pulse-lose so on

    7.All mechanisms 100% coin tested before shipment

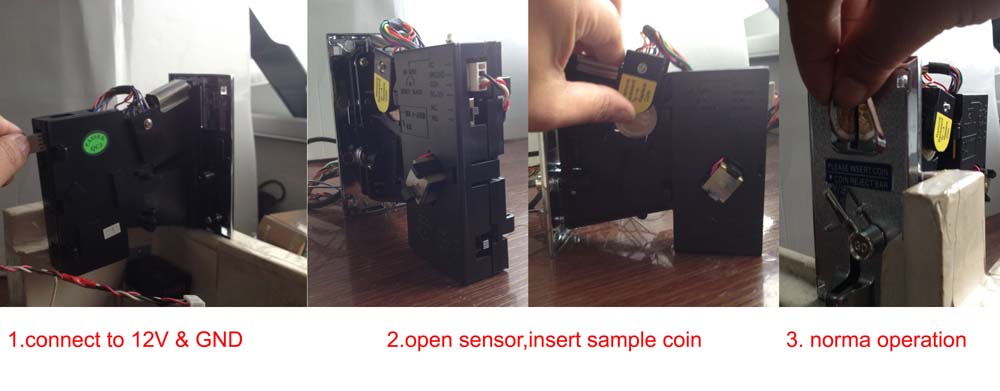

    8.To change the coin you wish to accept, simply lift up the retaining bracket and insert new sample coin and the mech. will accept only that coin

    9.Accepts coins based on the coins diameter size, thickness, and material content

    10.Dual sensors to virtually eliminate the problem of stringing

    11.Output line to allow simple connection of counting meter

    12.Capable of accepting a wide variety of coins and tokens

    13. 3-way adjustable timing switch for coin output 22ms / 45ms / 65ms

    14.Adjustable sensitivity to eliminate acceptance of high quality slugs
