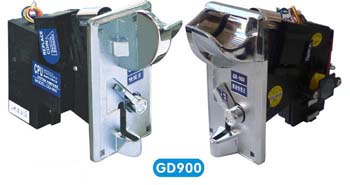

GD900 High value comparable coin acceptor
swift smoothly deposit coins.
support large coin,thick coin,small coin.stable performance
Rating voltage: DC+12V with 20percent discrepancy
Stand by Current: 50mA-55mA
Operating Current: 310mA-340mA
Accepted coin diameter: 18mm-32mm .
Accepted coin thickness: 1.2mm-3.0mm
Size per unit: W14 x D6.5 x H12.5(mm) .
Net weight: 0.38kgs
Packing: 50 pcs/case
Per case: 17.86 kgs .
Size per case: W745 x D352 x H275(mm)

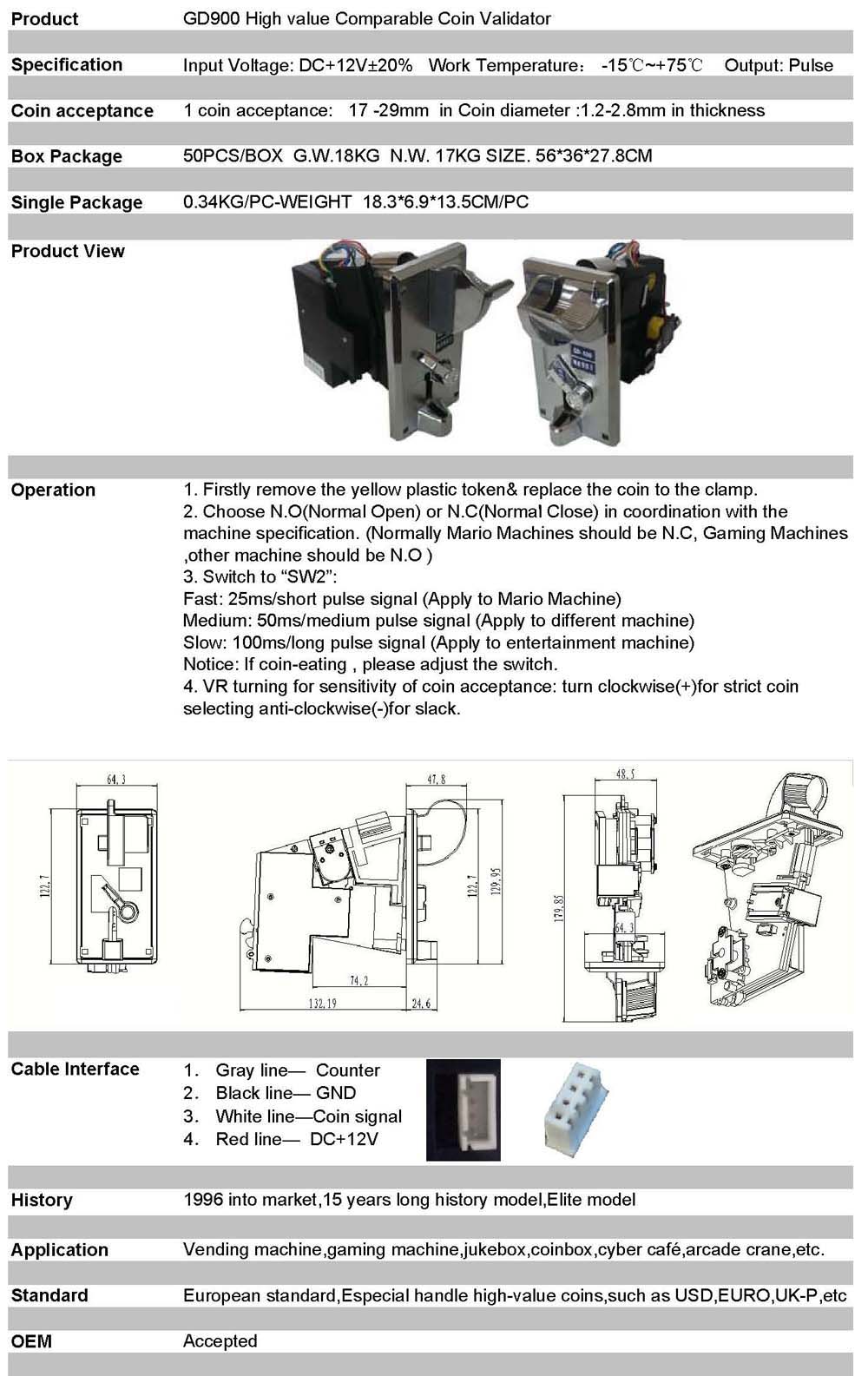

1. Firstly remove the yellow plastic token& replace the coin to the clamp.
2. If use RMB 1. please switch (SW3) to RMB Only
3. Choose N.O(Normal Open) or N.C(Normal Close) in coordination with the machine specification. (Normally Mario Machines should be N.C, Gaming Machines be N.O )
4. Switch to “SW2”:
Fast: 25ms/short pulse signal (Apply to Mario Machine)
Medium: 50ms/medium pulse signal (Apply to different machine)
Slow: 100ms/long pulse signal (Apply to entertainment machine)
Notice: If coin-eating , please adjust the switch.
5. VR turning for sensitivity of coin acceptance: turn clockwise(+)for strict coin selecting anti-clockwise(-)for slack.
6. Lines guide of connector:
Red Wire DC+12V
2)White wire COIN Signal
3)Black wire Ground
