    GD100 Comparable advanced coin acceptor selector validators





    GD100 Comparable advanced coin acceptor





    Rating voltage: DC+12V with 20% discrepancy

    Stand by Current: 50mA-55mA

    Operating Current: 310mA-340mA

    Accepted coin diameter: 18mm-32mm

    Accepted coin thickness: 1.2mm-3.0mm

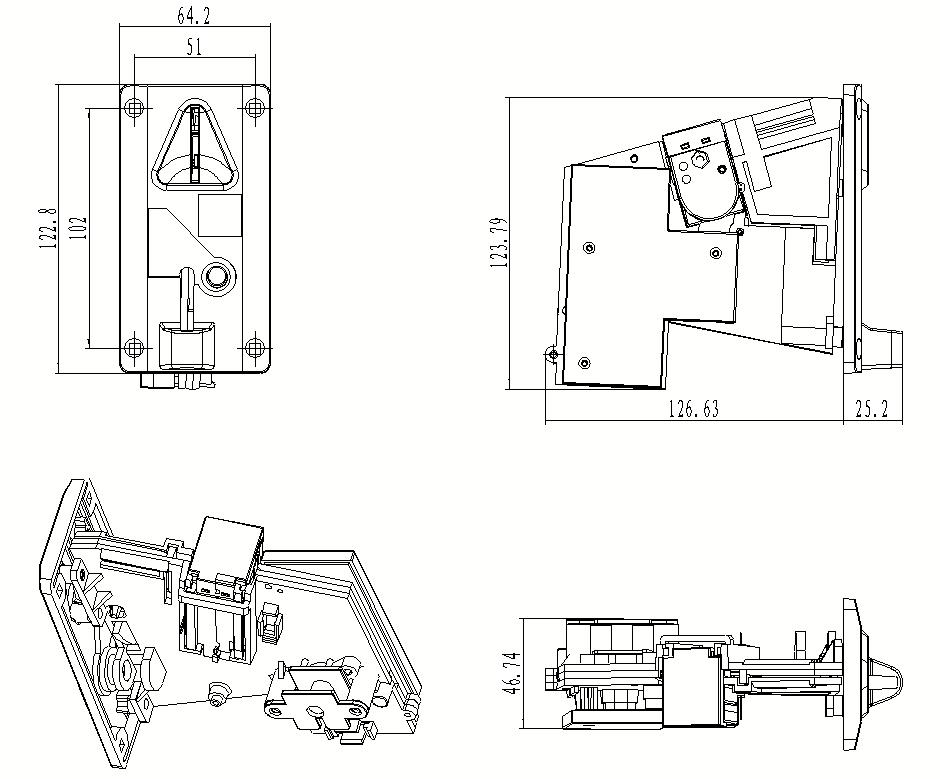

    Size per unit: W14 x D6.5 x H12.5(mm)

    Net weight: 0.27kgs

    Packing: 50 pcs/case

    Per case: 14.5 kgs













    GD100 comparable
    GD100 comparable
    Detailed Products

    Easy for installation.

    • Good level of security at a very competitive price.

    • Uses independent diameter sensing that discriminates shaved coins or tokens.

    • An array of sensors track the passage of the coin from the moment it enters the Comparitor until it exits, automatic warning when failure happens.

    • Fine-tuned against better quality slugs and frauds

    • Double-door design , improve the stability

    • High-sensitive judgment of singlechip, prevent wrong-count, pulse-lose so on

    • All mechanisms 100% coin tested before shipment

     GD100 comparable coin selector acceptor

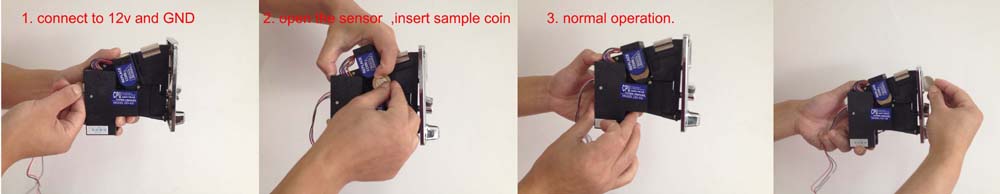

    • To change the coin you wish to accept, simply lift up the retaining bracket and insert new sample coin and the mech. will accept only that coin

    • Accepts coins based on the coins diameter size, thickness, and material content

    • Dual sensors to virtually eliminate the problem of stringing

    • Output line to allow simple connection of counting meter

    • Capable of accepting a wide variety of coins and tokens

    • 3-way adjustable timing switch for coin output 22ms / 45ms / 65ms

    • Adjustable sensitivity to eliminate acceptance of high quality slugs
