Rating voltage: DC+12V with 20% discrepancy
Stand by Current: 50mA-55mA
Operating Current: 310mA-340mA
Accepted coin diameter: 18mm-32mm
Accepted coin thickness: 1.2mm-3.0mm

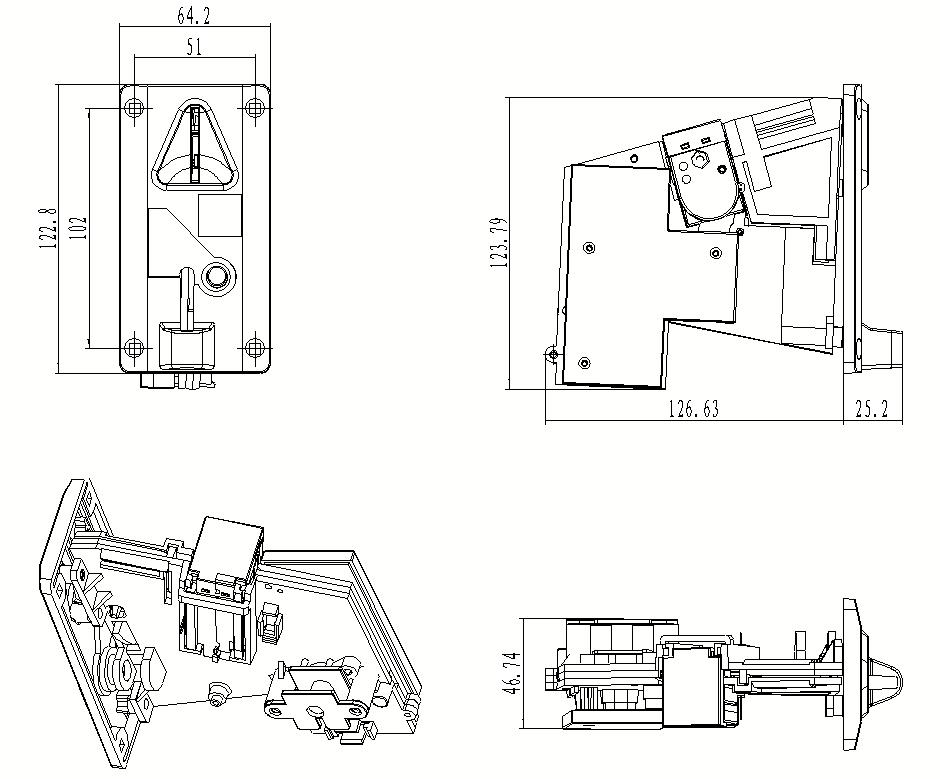

Size per unit: W14 x D6.5 x H12.5(mm)
Net weight: 0.27kgs
Packing: 50 pcs/case
Per case: 14.5 kgs
Easy for installation.
• Good level of security at a very competitive price.
• Uses independent diameter sensing that discriminates shaved coins or tokens.
• An array of sensors track the passage of the coin from the moment it enters the Comparitor until it exits, automatic warning when failure happens.
• Fine-tuned against better quality slugs and frauds
• Double-door design , improve the stability
• High-sensitive judgment of singlechip, prevent wrong-count, pulse-lose so on
• All mechanisms 100% coin tested before shipment

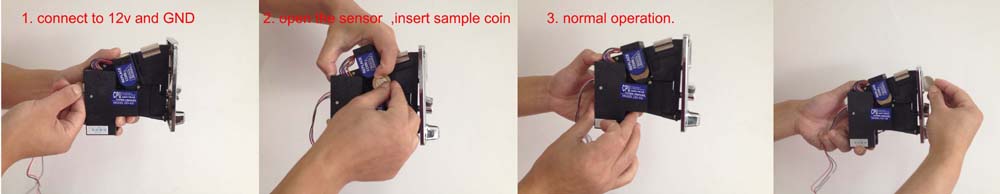

• To change the coin you wish to accept, simply lift up the retaining bracket and insert new sample coin and the mech. will accept only that coin
• Accepts coins based on the coins diameter size, thickness, and material content
• Dual sensors to virtually eliminate the problem of stringing
• Output line to allow simple connection of counting meter
• Capable of accepting a wide variety of coins and tokens
• 3-way adjustable timing switch for coin output 22ms / 45ms / 65ms
• Adjustable sensitivity to eliminate acceptance of high quality slugs
